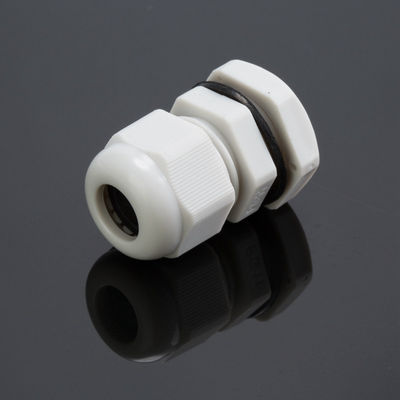

PG9 Plastic Nylon Cable Gland iP68 Environment Friendly For Heavy Duty Connector
| Place of Origin | zhejiang china |
|---|---|
| Brand Name | KL |
| Model Number | M |
| Minimum Order Quantity | 10000pcs |
| Price | EXW usd0.66/pcs |
| Packaging Details | 100pcs/bag 3600pcs/carton |
| Delivery Time | 3days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10000pcs+2CARTONS+1day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Nylon Cable Gland | Material | Nylon 66 |
|---|---|---|---|
| Package | 100pcs/bag | Size | PG9 |
| ITEM.NO | M | ITEM TYPE | NYLON |
| M63Cable Range | 37mm-44mm | PRICE | USD0.66/PCS |
| High Light | PG9 Nylon Cable Gland,IP68 Nylon Cable Gland,Environment Friendly Plastic Cable Gland |
||
You can tick the products you need and communicate with us in the message board.
| Thread diameter (mm) | Cable diameter (mm) | Thread Out .D AG(mm) | Thread Length (mm) | Spannersize(mm) | |
|---|---|---|---|---|---|
| M12X1.5 | 3~6.5 | 12 | 8 | 18/17 | |
| M12X1.5 | 2-5 | 12 | 8 | 18/17 | |
| M12X1.5 | 4-8 | 12 | 8 | 18/19 | |
| M12X1.5 | 2-6 | 12 | 8 | 18/19 | |
| M16X1.5 | 4-8 | 16 | 9 | 22/19 | |
| M16X1.5 | 2-6 | 16 | 9 | 22/19 | |
| M16X1.5 | 5-10 | 16 | 9 | 22/19 | |
| M16X1.5 | 3-7 | 16 | 9 | 22/19 | |
| M18X1.5 | 5-10 | 18 | 9 | 24/22 | |
| M18X1.5 | 3-7 | 18 | 9 | 24/22 | |
| M20X1.5 | 6-12 | 20 | 10 | 27/24 | |
| M20X1.5 | 5-9 | 20 | 10 | 27/24 | |
| M20X1.5 | 10-14 | 20 | 10 | 27/27 | |
| M20X1.5 | 8-12 | 20 | 10 | 27/27 | |
| M22X1.5 | 10-14 | 22 | 10 | 30/27 | |
| M22X1.5 | 8-12 | 22 | 10 | 30/27 | |
| M24X1.5 | 12-16 | 24 | 10 | 30/27 | |
| M24X1.5 | 10-14 | 24 | 10 | 30/27 | |
| M25X1.5 | 13-18 | 25 | 10 | 33 | |
| M24X1.5 | 9-16 | 25 | 10 | 33 | |
| M27X1.5 | 13-18 | 27 | 10 | 36/33 | |
| M27X1.5 | 9-16 | 27 | 10 | 36/33 | |
| M30X1.5 | 16-20 | 30 | 11 | 37/36 | |
| M30X1.5 | 13-18 | 30 | 11 | 37/36 | |
| M32X1.5 | 16-20 | 32 | 11 | 40/35 | |
| M32X1.5 | 13-18 | 32 | 11 | 40/35 | |
| M32X1.5 | 18-25 | 32 | 13 | 40/42 | |
| M32X1.5 | 13-20 | 32 | 13 | 40/42 | |
| M36X1.5 | 18-25 | 36 | 12 | 46/42 | |
| M36X1.5 | 13-20 | 36 | 12 | 46/42 | |
| M40X1.5 | 22-32 | 40 | 15 | 50/52 | |
| M40X1.5 | 20-26 | 40 | 15 | 50/52 | |
| M50X1.5 | 32-40 | 50 | 15 | 62/60 | |
| M50X1.5 | 25-31 | 50 | 15 | 62/60 | |
| M63X1.5 | 37-44 | 63 | 15 | 75/68 | |
| M63X1.5 | 29-35 | 63 | 15 | 75/68 |
Product Description
Metal Plastic Nylon Cable Gland For Heavy Duty Connector
Green Power Environment Friendly Wholesale Nylon pg11 pasacable plastico ip68
Thread Spec. :NPT(Metric)
Material: Parts A, C, E are made of Ul approvd nylon PA66,
parts B and D are made of Nitrile Butadiene rubber (NBR)
Working Temperature:
-40℃ ~ 100℃ in static state,instantaneous heat resistance up to 120℃;
-20℃ to 80℃ in dynamic state,instantaneous heat resistance up to 100℃
Characteristics: Special design of clamping die and rubber part,large range in clamping cable,
ultra-strong stretching resistance,waterproof,dustproof,and high ability to resist salt,
Extra Large Cable Glands also known well as Oversized Cable Glands , It is made by Nickel Plated Brass. Demand for larger & oversized brass fittings is constantly increasing, especially in offshore and renewable energy applications. This product can be found in Metric: M63, M75, M80, M90, M100, M110 and BSPP (British Standard Pipe Parallel) Threads G2 ½”, G3” & G4” sizes. Different seal materials are offered depending on your application. For the use in oily environments, nickel plated brass is best suited. For outdoor applications and saline environments, the fittings can be equipped with an EPDM seal. Furthermore, Silicone – for high or low temperatures for applications that require chemical resistance, are available upon request.
NPT stands for National Pipe Thread, which is a U.S. standard for tapered threads having a 60 degree thread angle with taper angle of 1.79 degrees.
