3/4 NPT Nylon Cable Gland Long Thread Waterproof M16x1.5 PG13.5 Free Sample
| Place of Origin | zhejiang china |
|---|---|
| Brand Name | KL |
| Certification | ROHS |
| Model Number | M20 |
| Minimum Order Quantity | 3600pcs |
| Packaging Details | 100pcs/bag 3600pcs/carton |
| Delivery Time | 3days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10000pcs+2CARTONS+1day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Nylon Screw Plastic Hole Plugs | Type | Metal IP68 Cable Glands |
|---|---|---|---|
| MOQ | 3600pcs | Package | 100pcs/bag |
| Size | M32 | ITEM.NO | NPT, M. PG |
| High Light | PG13.5 Nylon Cable Gland,M16x1.5 Nylon Cable Gland,Waterproof 3/4 NPT Cable Gland |
||
You can tick the products you need and communicate with us in the message board.
| Thread diameter (mm) | Cable diameter (mm) | Thread Out .D AG(mm) | Thread Length (mm) | Spannersize(mm) | |
|---|---|---|---|---|---|
| pg7 | 3~6.5 | 12.5 | 8 | 18/17 | |
| pg9 | 4~8 | 15.2 | 8 | 22/19 | |
| pg9 | 2-6 | 15.2 | 8 | 22/19 | |
| PG11 | 5-10 | 18.6 | 9 | 24/22 | |
| PG11 | 3-7 | 18.6 | 9 | 24/22 | |
| PG13.5 | 6-12 | 20.4 | 10 | 27/24 | |
| PG13.5 | 5-9 | 20.4 | 10 | 27/24 | |
| PG16 | 10-14 | 22.5 | 10 | 30/27 | |
| PG16 | 8-12 | 22.5 | 10 | 30./27 | |
| PG19 | 12-16 | 24 | 10 | 30/27 | |
| PG19 | 10-14 | 24 | 10 | 30/27 | |
| PG21 | 9-16 | 28.3 | 10 | 36/33 | |
| PG21 | 13-18 | 28.3 | 10 | 36/33 | |
| PG25 | 16-21 | 30 | 11 | 37/36 | |
| PG25 | 13-18 | 30 | 11 | 37/36 | |
| PG29 | 18-25 | 37 | 12 | 46/42 | |
| PG29 | 13-20 | 37 | 12 | 46/42 | |
| PG36 | 22-32 | 47 | 14 | 58/52 | |
| PG36 | 20-26 | 47 | 14 | 58/52 | |
| PG42 | 32-40 | 54 | 14 | 64/60 | |
| PG42 | 25-31 | 54 | 14 | 64/60 | |
| PG48 | 37-44 | 59.3 | 14.5 | 70/64 | |
| PG48 | 29-35 | 59.3 | 14.5 | 70/64 | |
| PG63 | 42-50 | 71 | 28 | 82/77 | |
| PG63 | 32-40 | 71 | 28 | 82/77 |
Product Description
Nylon cable gland free sample long thread waterproof NPT3/4 ,M16*1.5, PG13.5
Thread Spec. :NPT(Metric)
Material: Parts A, C, E are made of Ul approvd nylon PA66,
parts B and D are made of Nitrile Butadiene rubber (NBR)
Working Temperature:
-40℃ ~ 100℃ in static state,instantaneous heat resistance up to 120℃;
-20℃ to 80℃ in dynamic state,instantaneous heat resistance up to 100℃
Characteristics: Special design of clamping die and rubber part,large range in clamping cable,
ultra-strong stretching resistance,waterproof,dustproof,and high ability to resist salt,
PG-9 IP68 waterproof cable gland MG Thread nylon cable glands is durable, insulated, safe, reusable. Widely used in a variety of
electrical products, lighting, junction box, control board early warning system, lighting equipment, renovation and home wiring
wiring equipment and other fields.
The nylon cable glands has passed CSA, CE, ROHS and other safety technology certification
Features:
• Secure fixed design.
• Panel Mounting or free floating. Mounting holes are furnished at each end of the block.
• Marking paper strips and protective covers are available.
• Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar
electrical products, lighting, junction box, control board early warning system, lighting equipment, renovation and home wiring
wiring equipment and other fields.
The nylon cable glands has passed CSA, CE, ROHS and other safety technology certification
Features:
• Secure fixed design.
• Panel Mounting or free floating. Mounting holes are furnished at each end of the block.
• Marking paper strips and protective covers are available.
• Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar
Good Material
PA66
1. Color:Grey,Black,2.package 4000pcs/cartons3.pack list: 44cmx38cmx36cm
PA66
1. Color:Grey,Black,2.package 4000pcs/cartons3.pack list: 44cmx38cmx36cm
4.GW:23kg NW:22kg

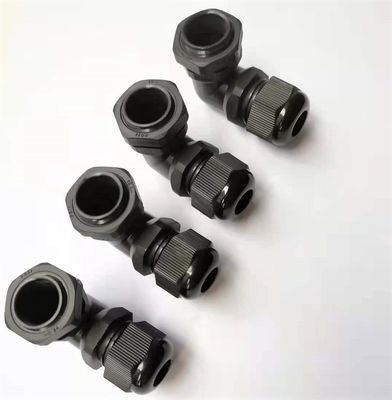

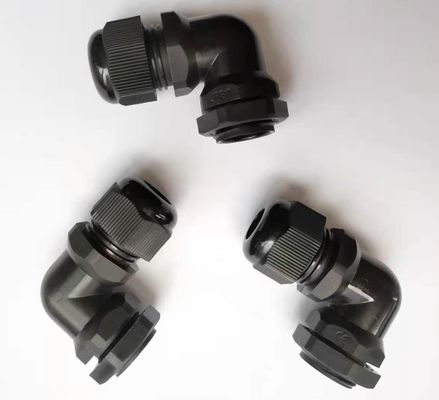

1. Angle 90 & shaped anti-bending cable gland.
2. The claw encase the seal,fix the cable tightly by tightening the nut.
Claw:PA
Seal:NBR
O-ring:NBR
2. The claw encase the seal,fix the cable tightly by tightening the nut.
Claw:PA
Seal:NBR
O-ring:NBR
4. Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
5. Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
6. Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
