NPT 3/4 Rubber Brass Cable Gland IP68 Metal PG Explosion Proof Waterproof
| Place of Origin | zhejiang china |
|---|---|
| Brand Name | KL |
| Model Number | PG |
| Minimum Order Quantity | 1000pcs |
| Price | EXW usd1.13/pcs |
| Packaging Details | 100pcs/bag 5000pcs/carton |
| Delivery Time | 3days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10000pcs+2CARTONS+1day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | NPT Rubber Brass Cable Glands | Material | Brass Cable Glands |
|---|---|---|---|
| Type | Metal IP68 Cable Glands | MOQ | 1000pcs |
| Package | 100pcs/bag | Size | PG9-PG63 M6-M80 |
| ITEM.NO | NPT, G. M. PG | ITEM TYPE | Brass |
| NPT3/4 Cable Range | 3mm-7mm | NPT3/4 GW | 0.052kg/pcs |
| Package | 250pcs/carton | PRICE | USD1.13/PCS |
| High Light | IP68 Brass Cable Gland,Explosion Proof Brass Cable Gland,Waterproof NPT 3/4 Cable Gland |
||
You can tick the products you need and communicate with us in the message board.
| Thread diameter (mm) | Cable diameter (mm) | Thread length GL (mm) | Spannersize(mm) | PACKAGE | |
|---|---|---|---|---|---|
| NPT 1/4" | 3~7 | 6 | 14/16 | 100PCS | |
| NPT 3/8" | 4~8 | 7 | 17/18 | 100PCS | |
| NPT 1/2" | 8-12 | 8 | 22 | 100PCS | |
| NPT 3/4" | 13-18 | 8 | 30 | 100PCS | |
| NPT 1" | 15-22 | 9 | 34/36 | 100PCS | |
| NPT 1-1/4" | 22-28 | 10 | 43/45 | 100PCS | |
| NPT 1-1/4" | 22-30 | 10 | 45 | 100PCS | |
| NPT 1-1/2" | 25-32 | 10 | 50/52 | 100PCS | |
| NPT 2" | 37-44 | 12 | 64 | 100PCS | |
| NPT 2-1/2" | 42-52 | 15 | 76/81 | 100PCS | |
| NPT 3" | 65-70 | 18 | 98 | 100PCS |
Product Description

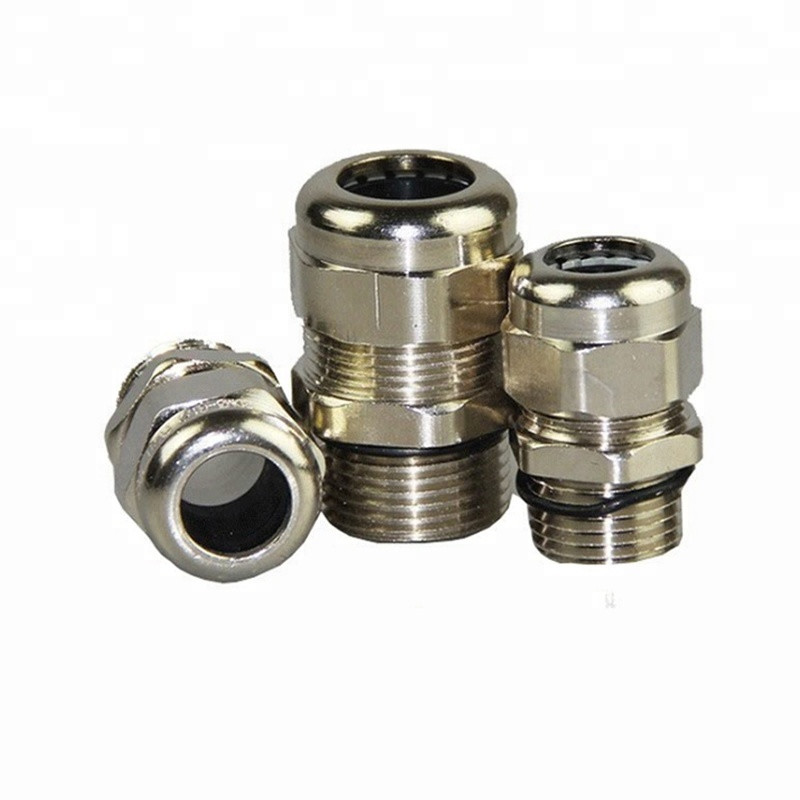

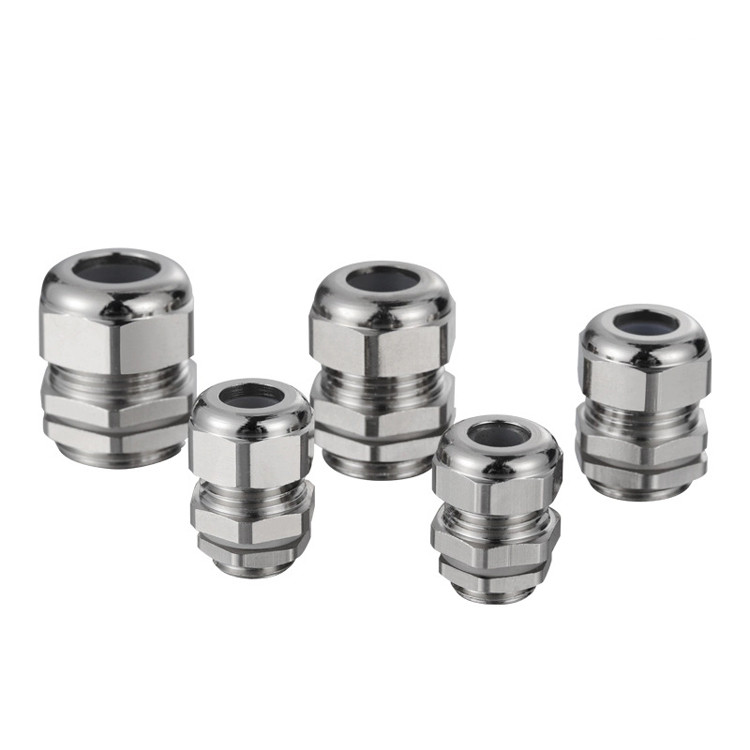

NPT 3/4 Waterproof Metal IP68 Explosion Proof M Series PG Rubber Brass Cable Glands
1. Material:brass,nickel plated Claw
2. Sealing and sealing ring:CE,ROHS Protection degree:IP68
3. Temperature Resistance:-40C to 100C .short time to 120C.
4. Thread length:Standard thread type is used for the equipment which has inner thread or for the thin board. Longer thread type is used for the thick board.
5. Function:Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured These cable glands.are designed to withstand water.dust.salt,acid-base,alcohol.oil and common solvent.
