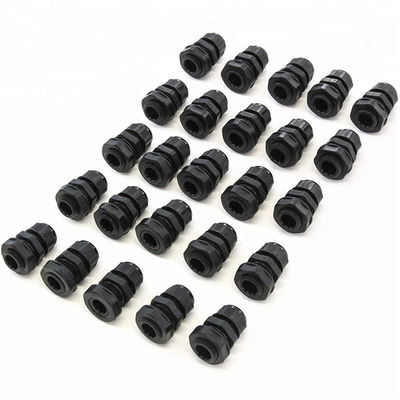

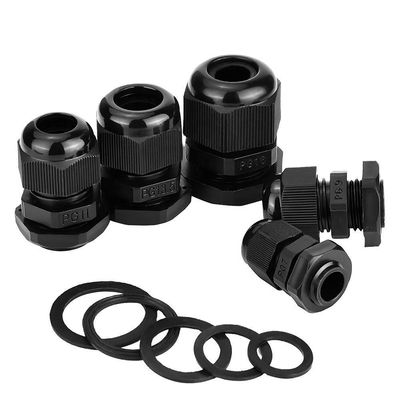

PG9 Nylon Cable Gland Joint Waterproof IP68 For 4mm - 8mm Dia Cable Wire
| Place of Origin | zhejiang china |
|---|---|
| Brand Name | KL |
| Model Number | PG |
| Minimum Order Quantity | 3600pcs |
| Price | EXW usd0.052/pcs |
| Packaging Details | 100pcs/bag 3600pcs/carton |
| Delivery Time | 3days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10000pcs+2CARTONS+1day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Nylon Cable Gland | Material | Nylon 66 |
|---|---|---|---|
| Type | Metal IP68 Cable Glands | MOQ | 3600pcs |
| Package | 100pcs/bag | Size | PG9 |
| ITEM.NO | NPT, G. M. PG | ITEM TYPE | NYLON |
| PG9 Cable Range | 4mm-8mm | PG9 | 3600PCS/CARTON GW:23kg |
| PRICE | USD0.052/PCS | ||
| High Light | Waterproof Nylon Cable Gland,Nylon Cable Gland IP68,PG9 Cable Gland Joint |
||
You can tick the products you need and communicate with us in the message board.
| Thread diameter (mm) | Cable diameter (mm) | Thread Out .D AG(mm) | Thread Length (mm) | Spannersize(mm) | |
|---|---|---|---|---|---|
| pg7 | 3~6.5 | 12.5 | 8 | 18/17 | |
| pg9 | 4~8 | 15.2 | 8 | 22/19 | |
| pg9 | 2-6 | 15.2 | 8 | 22/19 | |
| PG11 | 5-10 | 18.6 | 9 | 24/22 | |
| PG11 | 3-7 | 18.6 | 9 | 24/22 | |
| PG13.5 | 6-12 | 20.4 | 10 | 27/24 | |
| PG13.5 | 5-9 | 20.4 | 10 | 27/24 | |
| PG16 | 10-14 | 22.5 | 10 | 30/27 | |
| PG16 | 8-12 | 22.5 | 10 | 30./27 | |
| PG19 | 12-16 | 24 | 10 | 30/27 | |
| PG19 | 10-14 | 24 | 10 | 30/27 | |
| PG21 | 9-16 | 28.3 | 10 | 36/33 | |
| PG21 | 13-18 | 28.3 | 10 | 36/33 | |
| PG25 | 16-21 | 30 | 11 | 37/36 | |
| PG25 | 13-18 | 30 | 11 | 37/36 | |
| PG29 | 18-25 | 37 | 12 | 46/42 | |
| PG29 | 13-20 | 37 | 12 | 46/42 | |
| PG36 | 22-32 | 47 | 14 | 58/52 | |
| PG36 | 20-26 | 47 | 14 | 58/52 | |
| PG42 | 32-40 | 54 | 14 | 64/60 | |
| PG42 | 25-31 | 54 | 14 | 64/60 | |
| PG48 | 37-44 | 59.3 | 14.5 | 70/64 | |
| PG48 | 29-35 | 59.3 | 14.5 | 70/64 | |
| PG63 | 42-50 | 71 | 28 | 82/77 | |
| PG63 | 32-40 | 71 | 28 | 82/77 |
Product Description
PG9 Adjustable Locknut Waterproof IP68 Nylon Cable Gland Joint for 4mm-8mm Dia Cable Wire
Thread Spec. :NPT(Metric)
Material: Parts A, C, E are made of Ul approvd nylon PA66,
parts B and D are made of Nitrile Butadiene rubber (NBR)
Working Temperature:
-40℃ ~ 100℃ in static state,instantaneous heat resistance up to 120℃;
-20℃ to 80℃ in dynamic state,instantaneous heat resistance up to 100℃
Characteristics: Special design of clamping die and rubber part,large range in clamping cable,
ultra-strong stretching resistance,waterproof,dustproof,and high ability to resist salt,
