Waterproof PA Nylon Cable Gland PG9 Cable Entry Range 37mm - 44mm
| Place of Origin | zhejiang china |
|---|---|
| Brand Name | KL |
| Model Number | M |
| Minimum Order Quantity | 200pcs |
| Price | EXW usd0.66/pcs |
| Packaging Details | 100pcs/bag 3600pcs/carton |
| Delivery Time | 3days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10000pcs+2CARTONS+1day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Nylon Cable Gland | Material | Nylon 66 |
|---|---|---|---|
| Type | Metal IP68 Cable Glands | MOQ | 200pcs |
| Package | 100pcs/bag | Size | PG9 |
| ITEM.NO | M | ITEM TYPE | NYLON |
| M63Cable Range | 37mm-44mm | M63 | 200PCS/CARTON GW:20kg |
| PRICE | USD0.66/PCS | ||
| High Light | PA Nylon Cable Gland,Nylon Cable Gland PG9 |
||
You can tick the products you need and communicate with us in the message board.
| Thread diameter (mm) | Cable diameter (mm) | Thread Out .D AG(mm) | Thread Length (mm) | Spannersize(mm) | |
|---|---|---|---|---|---|
| M12X1.5 | 3~6.5 | 12 | 8 | 18/17 | |
| M12X1.5 | 2-5 | 12 | 8 | 18/17 | |
| M12X1.5 | 4-8 | 12 | 8 | 18/19 | |
| M12X1.5 | 2-6 | 12 | 8 | 18/19 | |
| M16X1.5 | 4-8 | 16 | 9 | 22/19 | |
| M16X1.5 | 2-6 | 16 | 9 | 22/19 | |
| M16X1.5 | 5-10 | 16 | 9 | 22/19 | |
| M16X1.5 | 3-7 | 16 | 9 | 22/19 | |
| M18X1.5 | 5-10 | 18 | 9 | 24/22 | |
| M18X1.5 | 3-7 | 18 | 9 | 24/22 | |
| M20X1.5 | 6-12 | 20 | 10 | 27/24 | |
| M20X1.5 | 5-9 | 20 | 10 | 27/24 | |
| M20X1.5 | 10-14 | 20 | 10 | 27/27 | |
| M20X1.5 | 8-12 | 20 | 10 | 27/27 | |
| M22X1.5 | 10-14 | 22 | 10 | 30/27 | |
| M22X1.5 | 8-12 | 22 | 10 | 30/27 | |
| M24X1.5 | 12-16 | 24 | 10 | 30/27 | |
| M24X1.5 | 10-14 | 24 | 10 | 30/27 | |
| M25X1.5 | 13-18 | 25 | 10 | 33 | |
| M24X1.5 | 9-16 | 25 | 10 | 33 | |
| M27X1.5 | 13-18 | 27 | 10 | 36/33 | |
| M27X1.5 | 9-16 | 27 | 10 | 36/33 | |
| M30X1.5 | 16-20 | 30 | 11 | 37/36 | |
| M30X1.5 | 13-18 | 30 | 11 | 37/36 | |
| M32X1.5 | 16-20 | 32 | 11 | 40/35 | |
| M32X1.5 | 13-18 | 32 | 11 | 40/35 | |
| M32X1.5 | 18-25 | 32 | 13 | 40/42 | |
| M32X1.5 | 13-20 | 32 | 13 | 40/42 | |
| M36X1.5 | 18-25 | 36 | 12 | 46/42 | |
| M36X1.5 | 13-20 | 36 | 12 | 46/42 | |
| M40X1.5 | 22-32 | 40 | 15 | 50/52 | |
| M40X1.5 | 20-26 | 40 | 15 | 50/52 | |
| M50X1.5 | 32-40 | 50 | 15 | 62/60 | |
| M50X1.5 | 25-31 | 50 | 15 | 62/60 | |
| M63X1.5 | 37-44 | 63 | 15 | 75/68 | |
| M63X1.5 | 29-35 | 63 | 15 | 75/68 |
Product Description

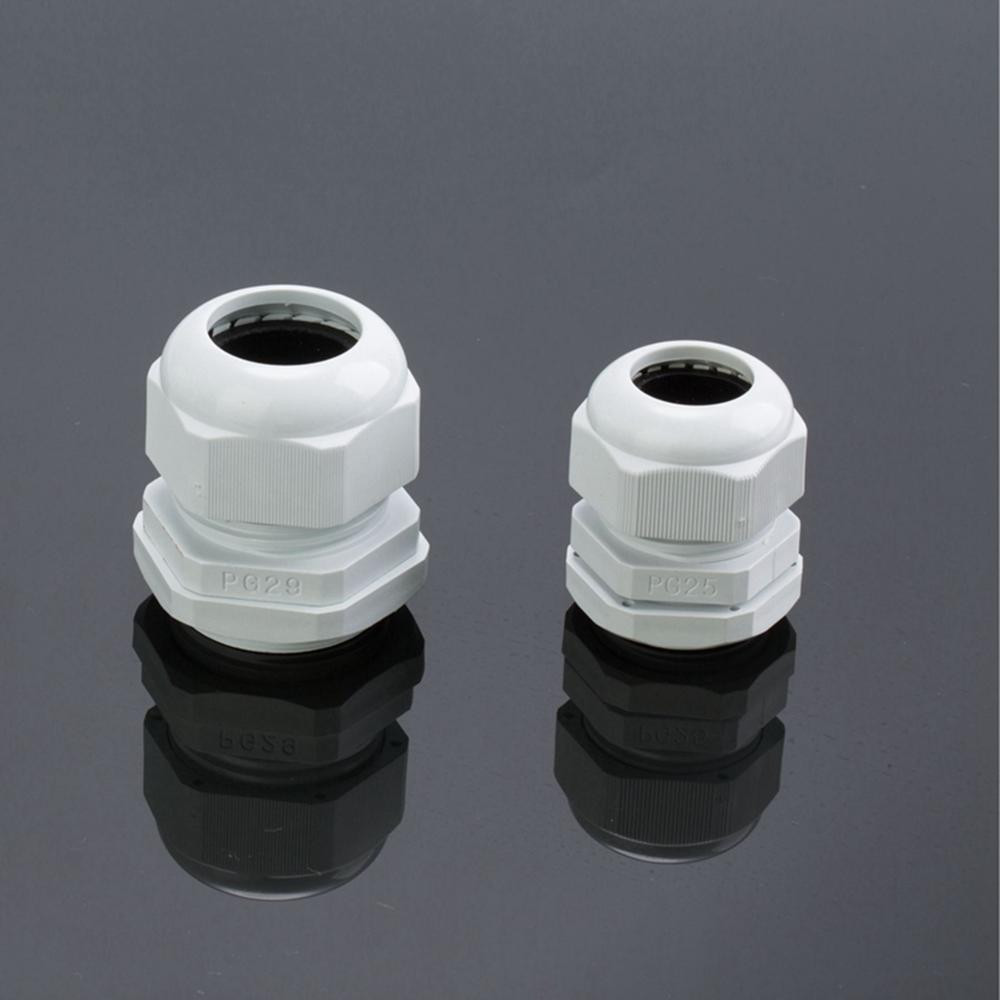

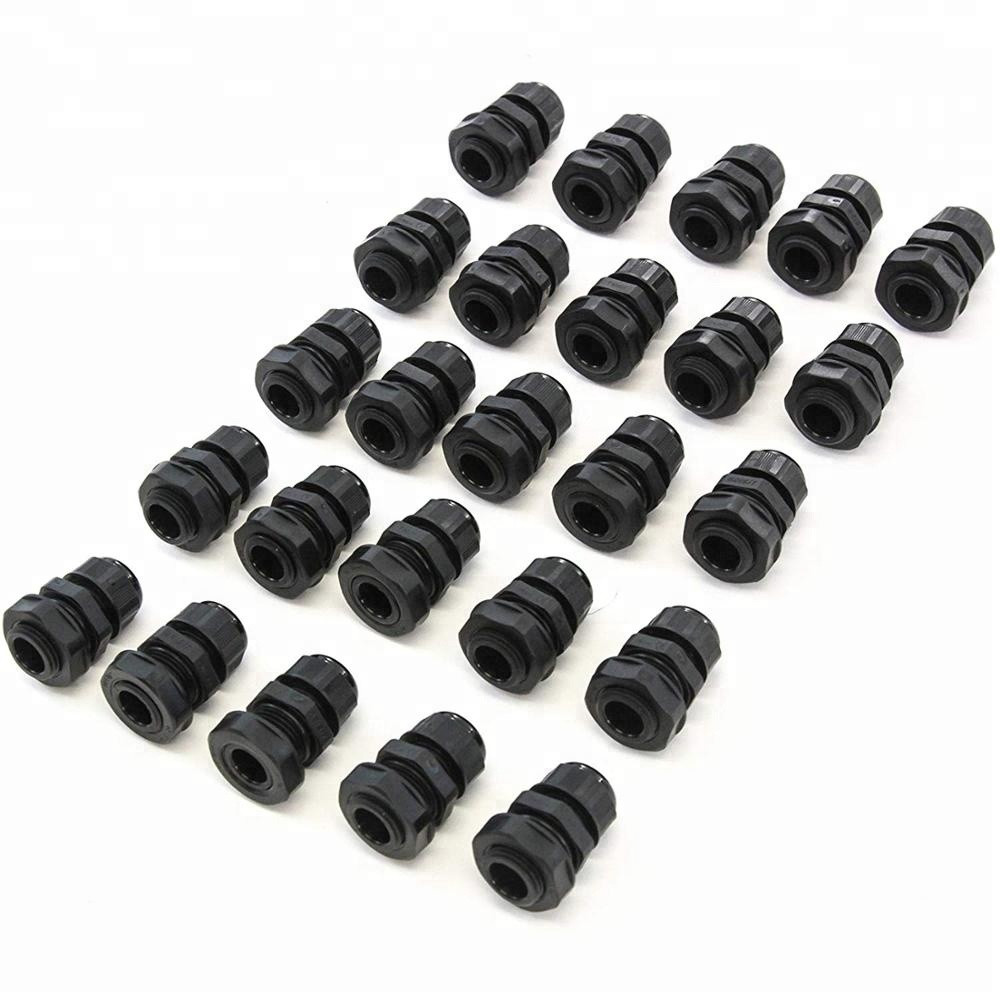

M63 Series PA Material Cable Entry Waterproof Electrical Cable range 37mm-44mm Plastic Cable Glands
Thread Spec. :NPT(Metric)
Material: Parts A, C, E are made of Ul approvd nylon PA66,
parts B and D are made of Nitrile Butadiene rubber (NBR)
Working Temperature:
-40℃ ~ 100℃ in static state,instantaneous heat resistance up to 120℃;
-20℃ to 80℃ in dynamic state,instantaneous heat resistance up to 100℃
Characteristics: Special design of clamping die and rubber part,large range in clamping cable,
ultra-strong stretching resistance,waterproof,dustproof,and high ability to resist salt,
