Polyester Coated Stainless Steel Cable Clamps Flexible Wire Bundle Holder
| Place of Origin | zhejiang china |
|---|---|
| Brand Name | KL |
| Model Number | 20inch |
| Minimum Order Quantity | 5000pcs |
| Price | EXW usd1/pcs |
| Packaging Details | 100pcs/bag 5000pcs/carton |
| Delivery Time | 3days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10000pcs+2CARTONS+1day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| MATERIAL | SS304.SS316 | Color | Balck |
|---|---|---|---|
| Package | 100pcs/bag | Width | 4.6mm,7.9mm.10mm,12mm,15mm,19mm |
| Thickness | 0.4mm | Price | Usd0.4/bag |
| Suitable Tool | HS-600 | OEM | Accept OEM |
| Type | Self Lock | Name | Coated Stainless Steel Alloy Clamp |
| High Light | Polyester Coated Stainless Steel Cable Clamps,OEM Stainless Steel Cable Clamps,Flexible Wire Bundle Holder |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Length mm(inch) | Max,Bundle dia.mm(inch) | Min. loop tensile strangth | PCS/BAG | |
|---|---|---|---|---|---|
| KLPS-4.6X150 | 150(5.9) | 37(1.46) | 800N(180IBS) | 100PCS | |
| KLPS-4.6X200 | 200(7.87) | 50(1.97) | 800N(180IBS) | 100PCS | |
| KLPS-4.6X250 | 250(9.84) | 63(2.48) | 800N(180IBS) | 100PCS | |
| KLPS-4.6X300 | 300(11.8) | 76(2.99) | 800N(180IBS) | 100PCS | |
| KLPS-4.6X350 | 350(13.78) | 89(3.5) | 800N(180IBS) | 100PCS | |
| KLPS-4.6X400 | 400(15.75) | 102(4.02) | 800N(180IBS) | 100PCS | |
| KLPS-4.6X450 | 450(17.72) | 115(4.53) | 800N(180IBS) | 100PCS | |
| KLPS-4.6X500 | 500(19.69) | 128(5.04) | 800N(180IBS) | 100PCS | |
| KLPS-4.6X550 | 550(21.65) | 141(5.55) | 800N(180IBS) | 100PCS | |
| KLPS-4.6X600 | 600(23.62) | 154(6.06) | 800N(180IBS) | 100PCS | |
| KLPS-7.9X150 | 150(5.9) | 37(1.46) | 1000N(225IBS) | 100PCS | |
| KLPS-7.9X200 | 200(7.87) | 50(1.97) | 1000N(225IBS) | 100PCS | |
| KLPS-7.9X250 | 250(9.84) | 63(2.48) | 1000N(225IBS) | 100PCS | |
| KLPS-7.9X300 | 300(11.8) | 76(2.99) | 1000N(225IBS) | 100PCS | |
| KLPS-7.9X350 | 350(13.78) | 89(3.5) | 1000N(225IBS) | 100PCS | |
| KLPS-7.9X400 | 400(15.75) | 102(4.02) | 1000N(225IBS) | 100PCS | |
| KLPS-7.9X450 | 450(17.72) | 115(4.53) | 1000N(225IBS) | 100PCS | |
| KLPS-7.9X500 | 500(19.69) | 128(5.04) | 1000N(225IBS) | 100PCS | |
| KLPS-7.9X550 | 550(21.65) | 141(5.55) | 1000N(225IBS) | 100PCS | |
| KLPS-7.9X600 | 600(23.62) | 154(6.06) | 1000N(225IBS) | 100PCS |
Product Description

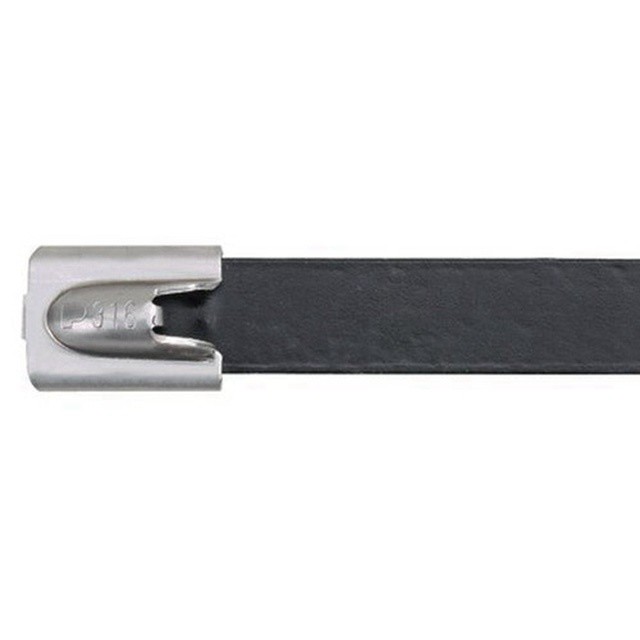

Polyester Coated Flexible plastic coated stainless steel alloy clamp (cable bundle holder)
Product Features:
1.Characteristic:they have an unique ball locking mechanism that alloweasily and quickly installed and not undone.
2.Hight tensile strength:Non-flammability
3.Temperature:working temperature-60c~550c
4.High resistance to acetic acid,alkali acid,sulphuric acid,corrode etc.
5.All length are avaiable,stainless steel type :304,316.
6.Accept width: 3.6mm,4.6mm,7.9mm,10mm,12mm,15mm,19mm.
all length are avaliable if the width is not change,wihtout extra cost.
coated self -locking stainless steel cable tie thickness:0.4mm.
Service life:50years
7.The stainless steel ball is D2.5mm
Strong pull(Tensile Strength): 100kg--200kg
different width,different Strong pull
Supporting tools: HS-600 and LQG

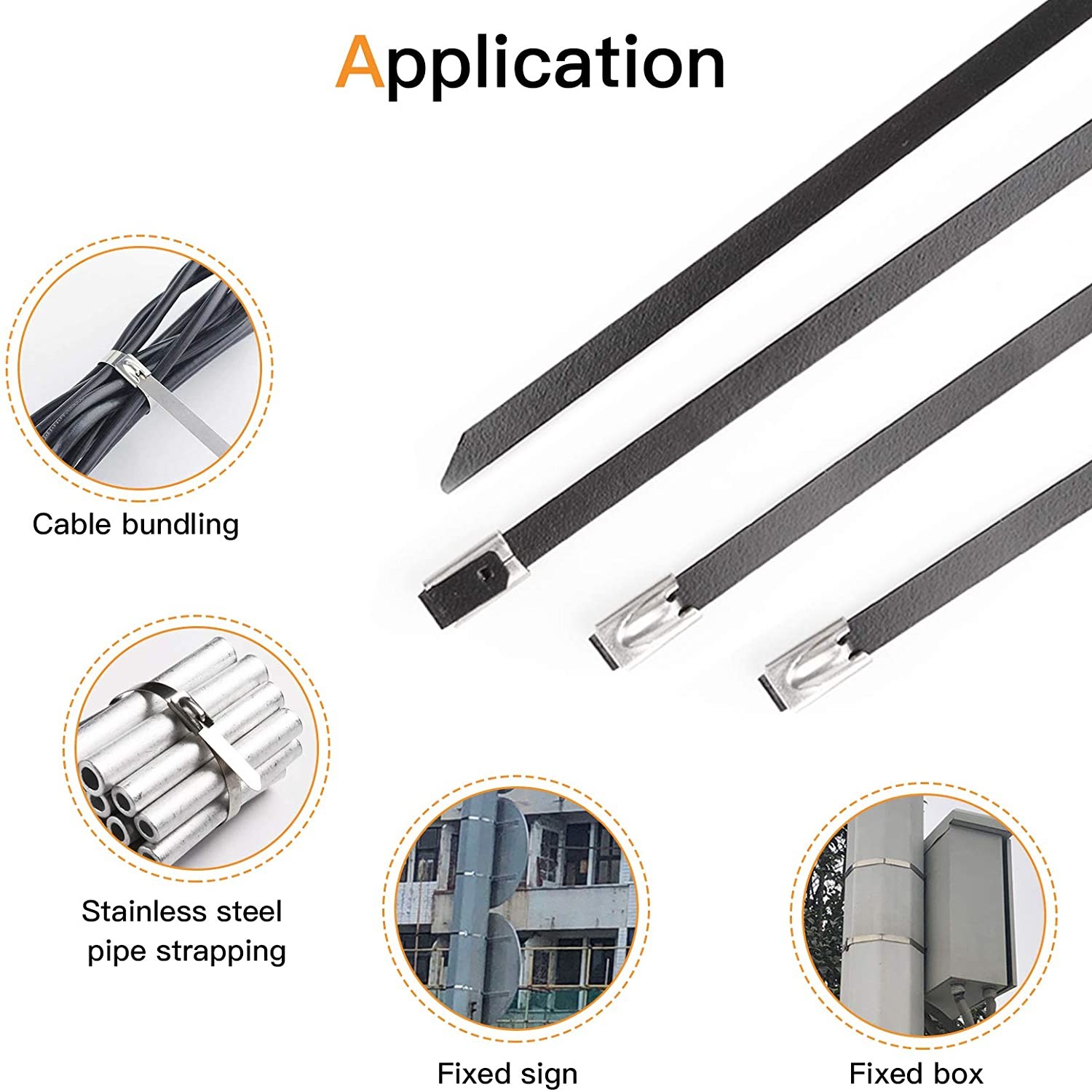

1.Coated Stainless Steel Cable Ties are designed to secure several electronic cables or wires together cables onto PV system. The cable ties are available in corrosion resistant stainless steel suitable for rigorous corrosive conditions, which provides a strong durable method of cable bundling.
The Coated Stainless Steel Cable Ties have unique self-locking mechanism allows easy and quick operation. Full or partial PVC coated tie provides superior insulation and protection of cable.
3.Stainless Steel Band is need for the purpose of tying down the Insulation jacket around pipes.
The existing bands are hand made from a roll of Stainless Steel band. A required length is cut and clip is manually attached to this band.Major customers: Petrochemical Plants, Power Plants, Refineries, L& Gas Plants, Ship Building Industries, Smelter.you can use a specialty tool such as our stainless steel banding tool JH-1908,LQA or NQA.
