Extra Large NPT Brass Cable Gland Nickel Plated IP68 M100*1.5mm

Place of Origin zhejiang china
Brand Name KL
Certification ROHS
Model Number M100*1.5
Minimum Order Quantity 1000pcs
Price EXW usd40/pcs
Packaging Details 100pcs/bag 5000pcs/carton
Delivery Time 3days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 10000pcs+2CARTONS+1day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Electrical Cable Gland Material Brass Cable Glands
Type Metal IP68 Cable Glands MOQ 5pcs
ITEM TYPE Brass Cable Range 70mm-80mm
GW 11.3g/pcs Package 8pcs/carton
High Light

NPT Brass Cable Gland


M100*1.5mm Brass Cable Gland


IP68 Cable Gland Nickel Plated

You can tick the products you need and communicate with us in the message board.
Thread diameter (mm) Cable diameter (mm) Thread length GL (mm) Spannersize(mm) PCS/CARTON
M12*1.5 3-7 6 14 1600
M16*1.5 4-8 7 17 800
M18*1.5 6-10 7 20 600
M20*1.5 8-12 8 22 500
M22*1.5 10-14 8 24 400
M24*1.5 10-14 8 24/27 100PCS
M25*1.5 10-14 8 24/27 400
M27*1.5 13-18 8 30 252
M30*1.5 13-18 8 30/32 224
M32*1.5 15-22 9 34 168
M33*1.5 15-22 9 34/36 168
M36*1.5 18-25 9 40 120
M40*1.5 22-28 10 43 120
M42*1.5 22-28 10 43/45 100
M48*1.5 25-32 10 50/52 72
M54*1.5 32-38 10 58 72
M60*1.5 37-44 12 64 40
M63*1.5 37-44 12 64/68 33
M72*1.5 42-52 15 76 24
M75*1.5 42-52 15 76/81 24
M80*1.5 50-62 16 86 18
M88*1.5 60-70 18 98 10
M100*1.5 70-80 20 110 8
Leave a Message
Thread diameter (mm) Cable diameter (mm) Thread length GL (mm) Spannersize(mm) PCS/CARTON
Product Description

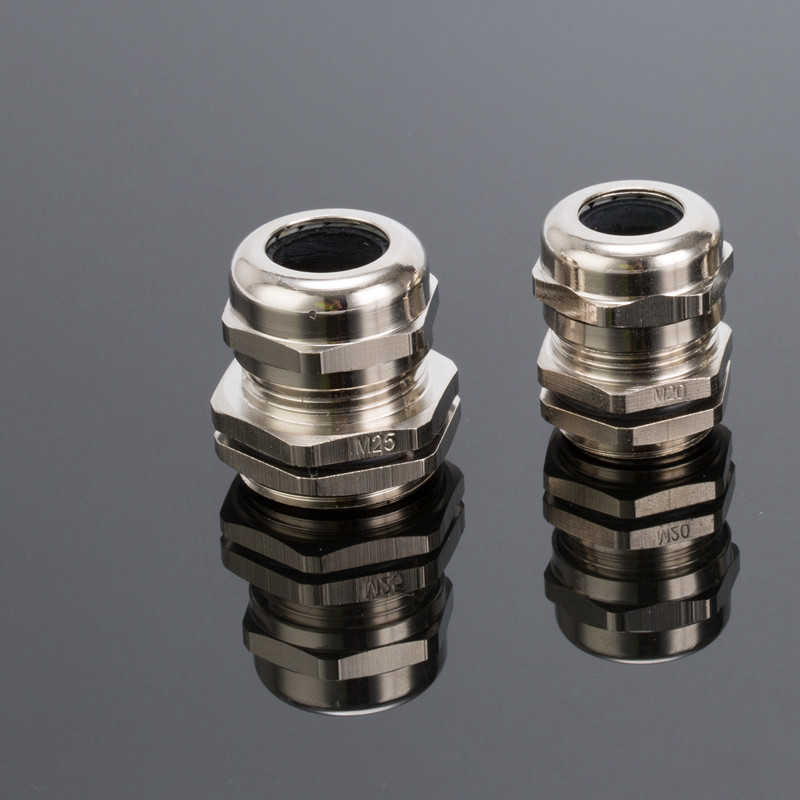

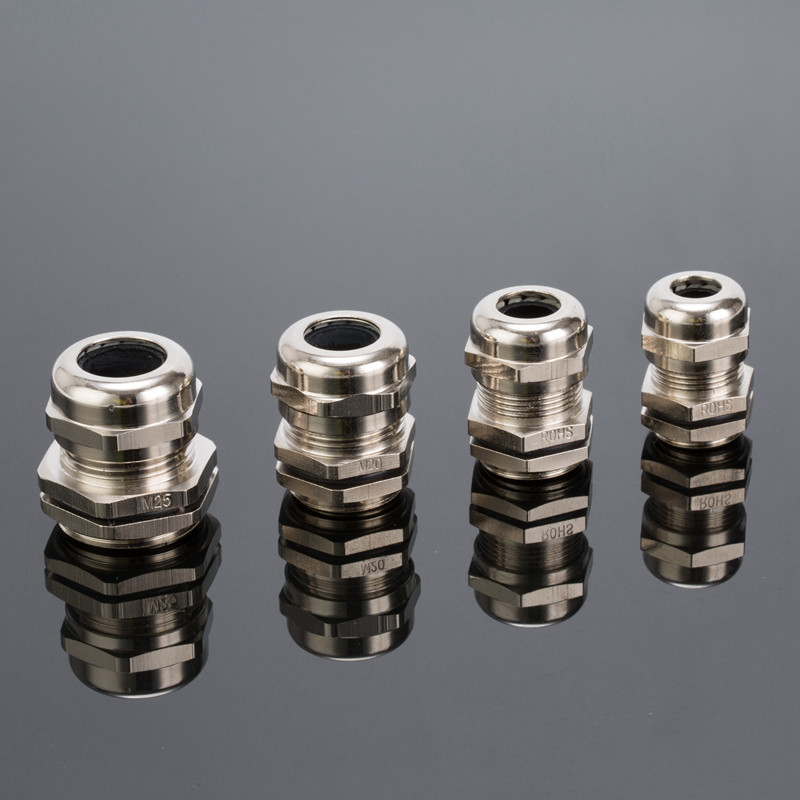

Nickel Plated Brass Extra Large Cable Glands M100*1.5mm


1.Material:brass,nickel plated Claw 2.Sealing and sealing ring:CE,ROHS Protection degree:IP68 3.Temperature Resistance:-40C to 100C .short time to 120C. 4.Thread length:Standard thread type is used for the equipment which has inner thread or for the thin board. Longer thread type is used for the thick board. 5.Function:Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured These cable glands.are designed to withstand water.dust.salt,acid-base,alcohol.oil and common solvent.



Extra Large Cable Glands also known well as Oversized Cable Glands , It is made by Nickel Plated Brass. Demand for larger & oversized brass fittings is constantly increasing, especially in offshore and renewable energy applications. This product can be found in Metric: M63, M75, M80, M90, M100, M110 and BSPP (British Standard Pipe Parallel) Threads G2 ½”, G3” & G4” sizes. Different seal materials are offered depending on your application. For the use in oily environments, nickel plated brass is best suited. For outdoor applications and saline environments, the fittings can be equipped with an EPDM seal. Furthermore, Silicone – for high or low temperatures for applications that require chemical resistance, are available upon request.


NPT stands for National Pipe Thread, which is a U.S. standard for tapered threads having a 60 degree thread angle with taper angle of 1.79 degrees.

Extra Large NPT Brass Cable Gland Nickel Plated IP68 M100*1.5mm 0


6. Q: Can we get the free sample?

A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.

7. Q: Can i choose multiple function into 1 device?

A: Yes, you can choose multiple function into one device, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.

8. Q: How to order and pay?

A: We accept T/T (bank transfer),
