Electrical Oversized Brass Cable Gland M80 Nickel Plated IP68 16mm Thread
| Place of Origin | zhejiang china |
|---|---|
| Brand Name | KL |
| Certification | ROHS |
| Model Number | M100*1.5 |
| Minimum Order Quantity | 10pcs |
| Price | EXW usd16/pcs |
| Packaging Details | 100pcs/bag 5000pcs/carton |
| Delivery Time | 3days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10000pcs+2CARTONS+1day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Brass Cable Glands | Type | Metal IP68 Cable Glands |
|---|---|---|---|
| ITEM TYPE | Brass | Cable Range | 50-62MM |
| GW | 13.3g/pcs | Package | 18pcs/carton |
| PRICE | USD32PCS | Thread | 16mm |
| Work Temperature | -40 ~100 | ||
| High Light | Oversized Brass Cable Gland,Electrical Brass Cable Gland,IP68 Cable Gland M80 |
||
You can tick the products you need and communicate with us in the message board.
| Thread diameter (mm) | Cable diameter (mm) | Thread length GL (mm) | Spannersize(mm) | PCS/CARTON | |
|---|---|---|---|---|---|
| M12*1.5 | 3-7 | 6 | 14 | 1600 | |
| M16*1.5 | 4-8 | 7 | 17 | 800 | |
| M18*1.5 | 6-10 | 7 | 20 | 600 | |
| M20*1.5 | 8-12 | 8 | 22 | 500 | |
| M22*1.5 | 10-14 | 8 | 24 | 400 | |
| M24*1.5 | 10-14 | 8 | 24/27 | 100PCS | |
| M25*1.5 | 10-14 | 8 | 24/27 | 400 | |
| M27*1.5 | 13-18 | 8 | 30 | 252 | |
| M30*1.5 | 13-18 | 8 | 30/32 | 224 | |
| M32*1.5 | 15-22 | 9 | 34 | 168 | |
| M33*1.5 | 15-22 | 9 | 34/36 | 168 | |
| M36*1.5 | 18-25 | 9 | 40 | 120 | |
| M40*1.5 | 22-28 | 10 | 43 | 120 | |
| M42*1.5 | 22-28 | 10 | 43/45 | 100 | |
| M48*1.5 | 25-32 | 10 | 50/52 | 72 | |
| M54*1.5 | 32-38 | 10 | 58 | 72 | |
| M60*1.5 | 37-44 | 12 | 64 | 40 | |
| M63*1.5 | 37-44 | 12 | 64/68 | 33 | |
| M72*1.5 | 42-52 | 15 | 76 | 24 | |
| M75*1.5 | 42-52 | 15 | 76/81 | 24 | |
| M80*1.5 | 50-62 | 16 | 86 | 18 | |
| M88*1.5 | 60-70 | 18 | 98 | 10 | |
| M100*1.5 | 70-80 | 20 | 110 | 8 |
Product Description

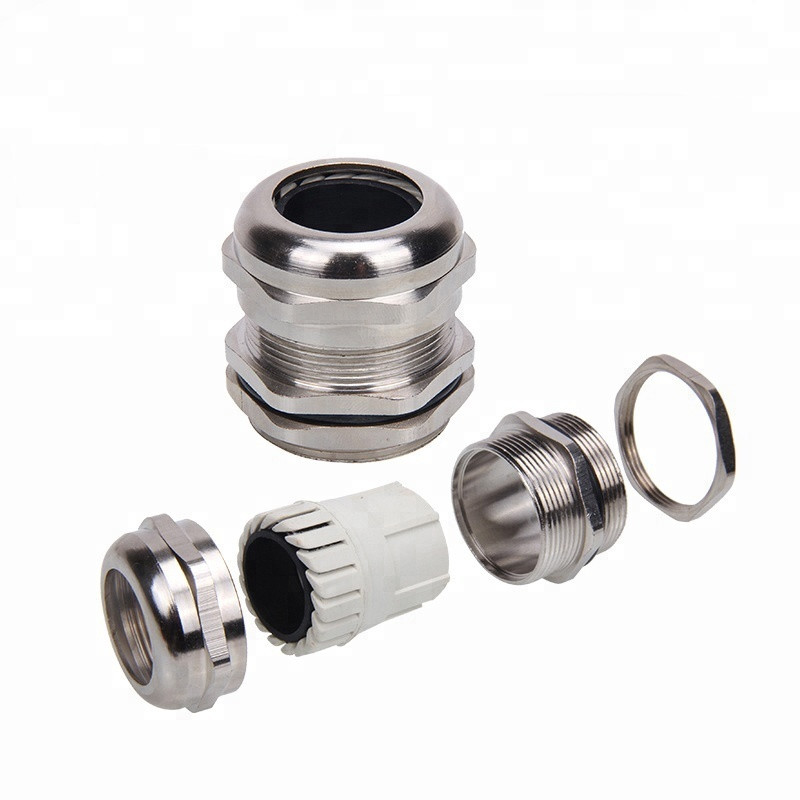

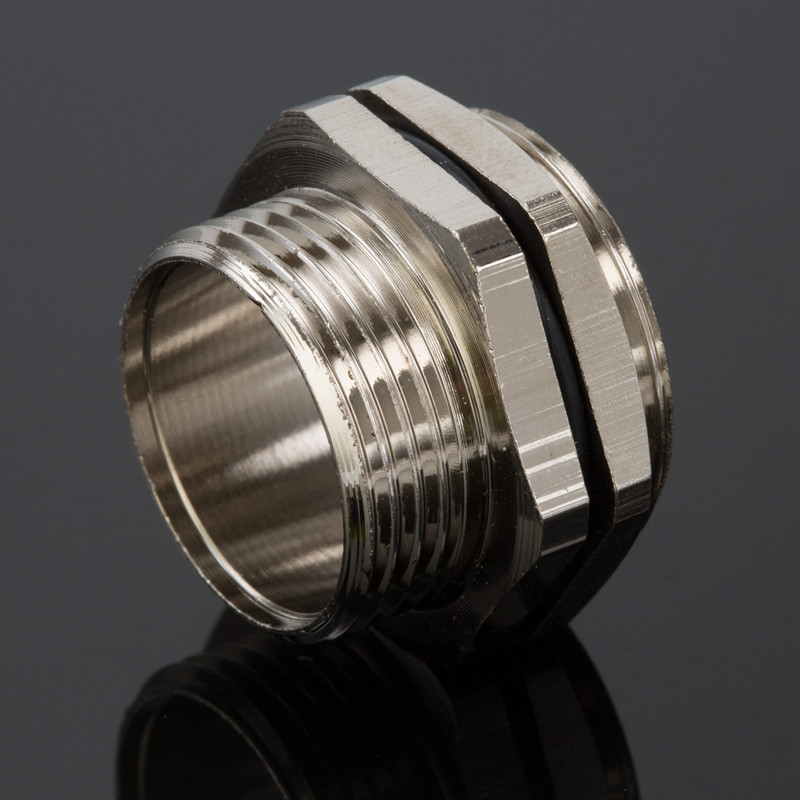

Nickel Plated Brass Oversized Cable Glands M80 Electrical Cable Gland
1. Material:brass,nickel plated Claw
2. Sealing and sealing ring:CE,ROHS Protection degree:IP68
3. Temperature Resistance:-40C to 100C .short time to 120C.
4. Thread length:Standard thread type is used for the equipment which has inner thread or for the thin board. Longer thread type is used for the thick board.
5. Function:Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured These cable glands.are designed to withstand water.dust.salt,acid-base,alcohol.oil and common solvent.
Extra Large Cable Glands also known well as Oversized Cable Glands , It is made by Nickel Plated Brass. Demand for larger & oversized brass fittings is constantly increasing, especially in offshore and renewable energy applications. This product can be found in Metric: M63, M75, M80, M90, M100, M110 and BSPP (British Standard Pipe Parallel) Threads G2 ½”, G3” & G4” sizes. Different seal materials are offered depending on your application. For the use in oily environments, nickel plated brass is best suited. For outdoor applications and saline environments, the fittings can be equipped with an EPDM seal. Furthermore, Silicone – for high or low temperatures for applications that require chemical resistance, are available upon request.
NPT stands for National Pipe Thread, which is a U.S. standard for tapered threads having a 60 degree thread angle with taper angle of 1.79 degrees.
