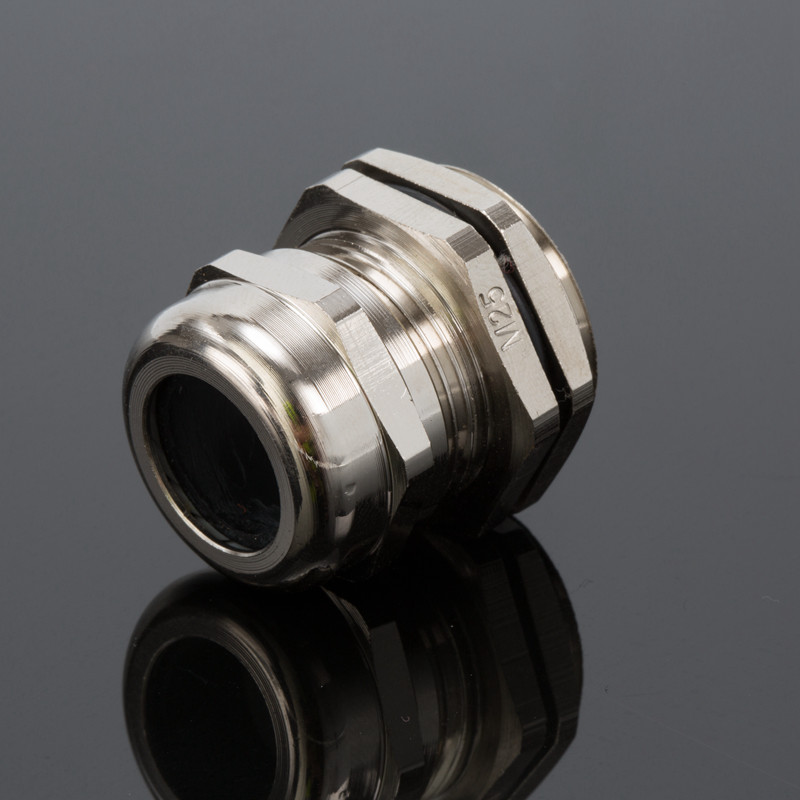

NPT 1 Inch Brass Electrical Cable Gland Waterproof IP68 Thread Length 9mm
| Place of Origin | zhejiang china |
|---|---|
| Brand Name | KL |
| Certification | ROHS |
| Model Number | NPT1" |
| Minimum Order Quantity | 100pcs |
| Price | EXW usd1.7/pcs |
| Packaging Details | 160pcs/carton |
| Delivery Time | 3days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10000pcs+2CARTONS+1day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Brass | Type | Metal IP68 Cable Glands |
|---|---|---|---|
| MOQ | 100pcs | ITEM.NO | NPT |
| Cable Range | 15mm-22mm | Package | 160pcs/carton |
| PRICE | USD1.7/PCS | Usage | Lock Cable Tight |
| Thread O.D | 9MM | ||
| High Light | 9mm Electrical Cable Gland,Waterproof Electrical Cable Gland,NPT 1 Inch Cable Gland |
||
You can tick the products you need and communicate with us in the message board.
| Thread diameter (mm) | Cable diameter (mm) | Thread length GL (mm) | Spannersize(mm) | PACKAGE | |
|---|---|---|---|---|---|
| NPT 1/4" | 3~7 | 6 | 14/16 | 100PCS | |
| NPT 3/8" | 4~8 | 7 | 17/18 | 100PCS | |
| NPT 1/2" | 8-12 | 8 | 22 | 100PCS | |
| NPT 3/4" | 13-18 | 8 | 30 | 100PCS | |
| NPT 1" | 15-22 | 9 | 34/36 | 100PCS | |
| NPT 1-1/4" | 22-28 | 10 | 43/45 | 100PCS | |
| NPT 1-1/4" | 22-30 | 10 | 45 | 100PCS | |
| NPT 1-1/2" | 25-32 | 10 | 50/52 | 100PCS | |
| NPT 2" | 37-44 | 12 | 64 | 100PCS | |
| NPT 2-1/2" | 42-52 | 15 | 76/81 | 100PCS | |
| NPT 3" | 65-70 | 18 | 98 | 100PCS |
Product Description
NPT1" Brass Waterproof Electrical IP68 BRASS Cable Gland Thread Length 9mm

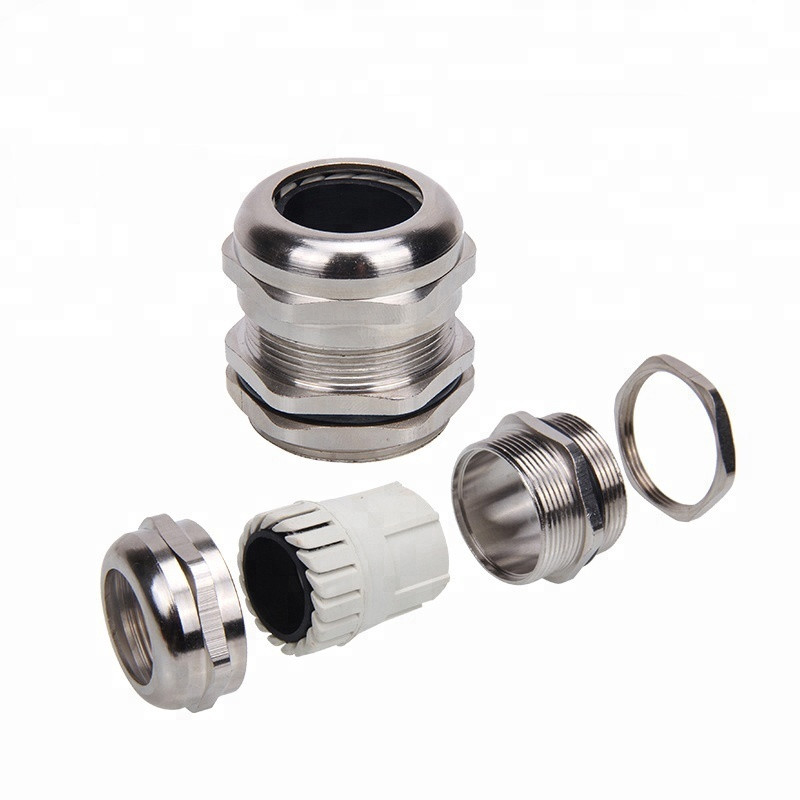

1.Material:brass,nickel plated Claw 2.Sealing and sealing ring:CE,ROHS Protection degree:IP68 3.Temperature Resistance:-40C to 100C .short time to 120C. 4.Thread length:Standard thread type is used for the equipment which has inner thread or for the thin board. Longer thread type is used for the thick board. 5.Function:Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured These cable glands.are designed to withstand water.dust.salt,acid-base,alcohol.oil and common solvent.
1.
Extra Large Cable Glands also known well as Oversized Cable Glands , It is made by Nickel Plated Brass. Demand for larger & oversized brass fittings is constantly increasing, especially in offshore and renewable energy applications. This product can be found in Metric: M63, M75, M80, M90, M100, M110 and BSPP (British Standard Pipe Parallel) Threads G2 ½”, G3” & G4” sizes. Different seal materials are offered depending on your application. For the use in oily environments, nickel plated brass is best suited. For outdoor applications and saline environments, the fittings can be equipped with an EPDM seal. Furthermore, Silicone – for high or low temperatures for applications that require chemical resistance, are available upon request.
NPT stands for National Pipe Thread, which is a U.S. standard for tapered threads having a 60 degree thread angle with taper angle of 1.79 degrees.
4. Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
5. Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
6. Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
