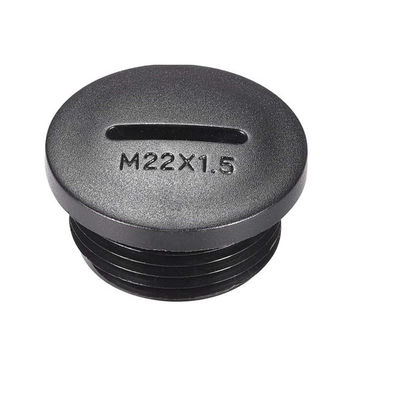

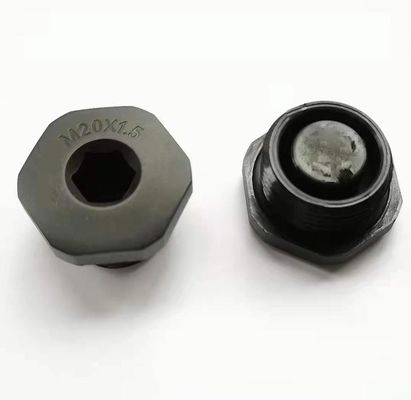

Natural Nylon 6/6 Plastic Hole Plugs 3/8 In Clamp Band Cap Nylon Screw IP68
| Place of Origin | zhejiang china |
|---|---|
| Brand Name | KL |
| Certification | ROHS |
| Model Number | M32 |
| Minimum Order Quantity | 3600pcs |
| Packaging Details | 100pcs/bag 3600pcs/carton |
| Delivery Time | 3days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10000pcs+2CARTONS+1day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Nylon Screw Plastic Hole Plugs | Type | Metal IP68 Cable Glands |
|---|---|---|---|
| MOQ | 3600pcs | Package | 100pcs/bag |
| Size | M32 | ITEM.NO | NPT, G. M. PG |
| PG9 | 3600PCS/CARTON GW:23kg | PRICE | USD0.052/PCS |
| High Light | Nylon 6/6 Plastic Hole Plugs,IP68 Plastic Hole Plugs |
||
You can tick the products you need and communicate with us in the message board.
| Thread diameter (mm) | Cable diameter (mm) | Thread Out .D AG(mm) | Thread Length (mm) | Spannersize(mm) | |
|---|---|---|---|---|---|
| pg7 | 3~6.5 | 12.5 | 8 | 18/17 | |
| pg9 | 4~8 | 15.2 | 8 | 22/19 | |
| pg9 | 2-6 | 15.2 | 8 | 22/19 | |
| PG11 | 5-10 | 18.6 | 9 | 24/22 | |
| PG11 | 3-7 | 18.6 | 9 | 24/22 | |
| PG13.5 | 6-12 | 20.4 | 10 | 27/24 | |
| PG13.5 | 5-9 | 20.4 | 10 | 27/24 | |
| PG16 | 10-14 | 22.5 | 10 | 30/27 | |
| PG16 | 8-12 | 22.5 | 10 | 30./27 | |
| PG19 | 12-16 | 24 | 10 | 30/27 | |
| PG19 | 10-14 | 24 | 10 | 30/27 | |
| PG21 | 9-16 | 28.3 | 10 | 36/33 | |
| PG21 | 13-18 | 28.3 | 10 | 36/33 | |
| PG25 | 16-21 | 30 | 11 | 37/36 | |
| PG25 | 13-18 | 30 | 11 | 37/36 | |
| PG29 | 18-25 | 37 | 12 | 46/42 | |
| PG29 | 13-20 | 37 | 12 | 46/42 | |
| PG36 | 22-32 | 47 | 14 | 58/52 | |
| PG36 | 20-26 | 47 | 14 | 58/52 | |
| PG42 | 32-40 | 54 | 14 | 64/60 | |
| PG42 | 25-31 | 54 | 14 | 64/60 | |
| PG48 | 37-44 | 59.3 | 14.5 | 70/64 | |
| PG48 | 29-35 | 59.3 | 14.5 | 70/64 | |
| PG63 | 42-50 | 71 | 28 | 82/77 | |
| PG63 | 32-40 | 71 | 28 | 82/77 |
Product Description
6/6 Nylon, Natural, 1/4 in Cable Clamping Dia., 3/8 in Clamp Band cap Nylon screw plastic hole plugs
Thread Spec. :NPT(Metric)
Material: Parts A, C, E are made of Ul approvd nylon PA66,
parts B and D are made of Nitrile Butadiene rubber (NBR)
Working Temperature:
-40℃ ~ 100℃ in static state,instantaneous heat resistance up to 120℃;
-20℃ to 80℃ in dynamic state,instantaneous heat resistance up to 100℃
Characteristics: Special design of clamping die and rubber part,large range in clamping cable,
ultra-strong stretching resistance,waterproof,dustproof,and high ability to resist salt,
PG-9 IP68 waterproof cable gland MG Thread nylon cable glands is durable, insulated, safe, reusable. Widely used in a variety of
electrical products, lighting, junction box, control board early warning system, lighting equipment, renovation and home wiring
wiring equipment and other fields.
The nylon cable glands has passed CSA, CE, ROHS and other safety technology certification
Features:
• Secure fixed design.
• Panel Mounting or free floating. Mounting holes are furnished at each end of the block.
• Marking paper strips and protective covers are available.
• Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar
electrical products, lighting, junction box, control board early warning system, lighting equipment, renovation and home wiring
wiring equipment and other fields.
The nylon cable glands has passed CSA, CE, ROHS and other safety technology certification
Features:
• Secure fixed design.
• Panel Mounting or free floating. Mounting holes are furnished at each end of the block.
• Marking paper strips and protective covers are available.
• Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar
Good Material
PA66
1. Color:Grey,Black,2.package 4000pcs/cartons3.pack list: 44cmx38cmx36cm
PA66
1. Color:Grey,Black,2.package 4000pcs/cartons3.pack list: 44cmx38cmx36cm
4.GW:23kg NW:22kg
1. Angle 90 & shaped anti-bending cable gland.
2. The claw encase the seal,fix the cable tightly by tightening the nut.
Claw:PA
Seal:NBR
O-ring:NBR
2. The claw encase the seal,fix the cable tightly by tightening the nut.
Claw:PA
Seal:NBR
O-ring:NBR
11. Q: How long it will take for delivery? 3-5days
12. A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
14. Q:How to repair the device if any problem ?
15. A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send back to us to fix it.
