Conversion Thread Brass Cable Gland NPT3/4 (D1) Outside Thread To M25 (D2) Inside Thread

Place of Origin zhejiang china
Brand Name KL
Certification ROHS
Model Number Brass Conversion thread
Minimum Order Quantity 100pcs
Price EXW usd2.5/pcs
Packaging Details 500pcs/carton
Delivery Time 3days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 10000pcs+2CARTONS+1day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name NPT Rubber Brass Cable Glands Material Brass Cable Glands
Type Metal IP68 Cable Glands MOQ 100pcs
ITEM.NO NPT Package 250pcs/carton
High Light

IP68 Cable Gland

,

Conversion Thread Brass Cable Gland

,

NPT3/4 Brass Cable Gland

You can tick the products you need and communicate with us in the message board.
Thread diameter (mm) Cable diameter (mm) Thread length GL (mm) Spannersize(mm) PACKAGE
NPT 1/4" 3~7 6 14/16 100PCS
NPT 3/8" 4~8 7 17/18 100PCS
NPT 1/2" 8-12 8 22 100PCS
NPT 3/4" 13-18 8 30 100PCS
NPT 1" 15-22 9 34/36 100PCS
NPT 1-1/4" 22-28 10 43/45 100PCS
NPT 1-1/4" 22-30 10 45 100PCS
NPT 1-1/2" 25-32 10 50/52 100PCS
NPT 2" 37-44 12 64 100PCS
NPT 2-1/2" 42-52 15 76/81 100PCS
NPT 3" 65-70 18 98 100PCS
Leave a Message
Thread diameter (mm) Cable diameter (mm) Thread length GL (mm) Spannersize(mm) PACKAGE
Product Description

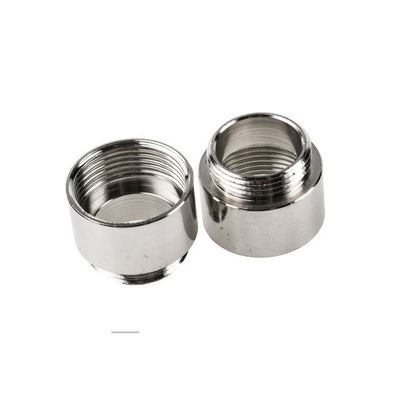

Brass Conversion thread NPT3/4 (D1) Outside thread to M25 (D2) inside thread



1.Material:brass,nickel plated Claw 2.Sealing and sealing ring:CE,ROHS Protection degree:IP68 3.Temperature Resistance:-40C to 100C .short time to 120C. 4.Thread length:Standard thread type is used for the equipment which has inner thread or for the thin board. Longer thread type is used for the thick board. 5.Function:Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured These cable glands.are designed to withstand water.dust.salt,acid-base,alcohol.oil and common solvent.



1.

Extra Large Cable Glands also known well as Oversized Cable Glands , It is made by Nickel Plated Brass. Demand for larger & oversized brass fittings is constantly increasing, especially in offshore and renewable energy applications. This product can be found in Metric: M63, M75, M80, M90, M100, M110 and BSPP (British Standard Pipe Parallel) Threads G2 ½”, G3” & G4” sizes. Different seal materials are offered depending on your application. For the use in oily environments, nickel plated brass is best suited. For outdoor applications and saline environments, the fittings can be equipped with an EPDM seal. Furthermore, Silicone – for high or low temperatures for applications that require chemical resistance, are available upon request.



NPT stands for National Pipe Thread, which is a U.S. standard for tapered threads having a 60 degree thread angle with taper angle of 1.79 degrees.



Conversion Thread Brass Cable Gland NPT3/4 (D1) Outside Thread To M25 (D2) Inside Thread 0

1. Question: How to contact you for detail information?

Answer: You can contact us through "Contact" button. Or you can write email to us at:

2. How fast you could make the delivery?

Answer: 2 weeks for standard configuration; And if the product are customized, the delivery date will be longer according to materials status.

3. Q :Are you manufacturer?

A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
